Scope of application:
– It is used to absorb odors and toxic gases.
– Air of hydrocarbons, organics and other components
used in purification.
In this system, dimensions and pressure drop are minimized and high volume
air purification is provided.

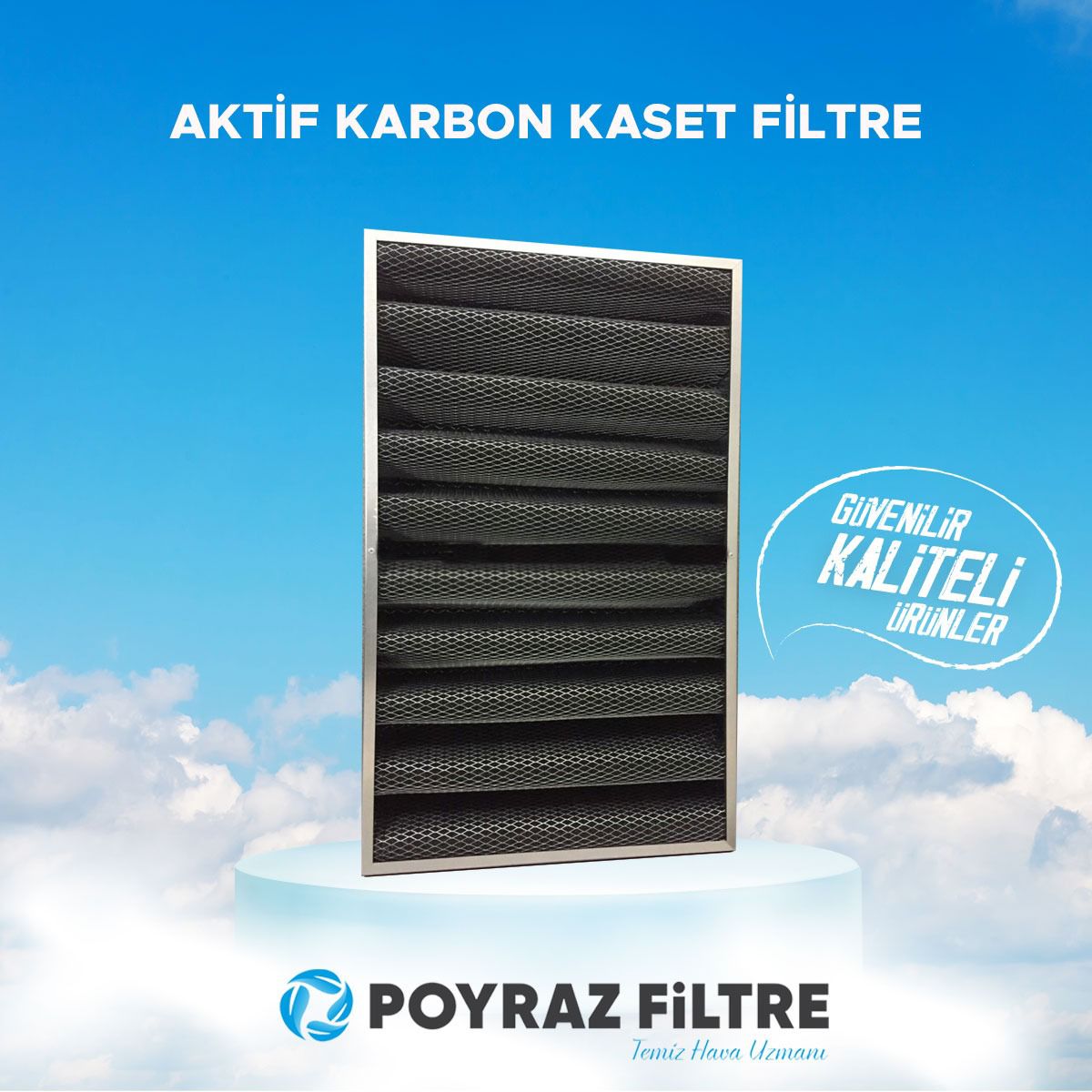

Cartridges are made of painted expanded sheet and filled with activated carbon.
8 (PC18) or 16 (PC35) cartridges are attached to the frame with an easy mounting system.
The gasket provides maximum air tightness.
* The volume weight is calculated as 600 kg/m3.
AG type carbon. For certain applications it is possible to use special carbons when requested.
Pre-filtering F6 with minimum efficiency can be recommended to protect the carbon from dust.
